Description

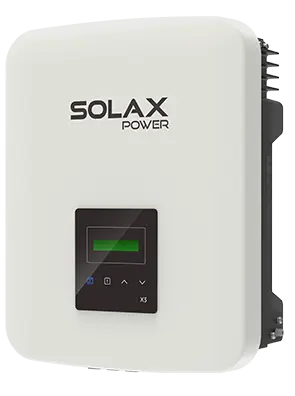

Solax 5kW three phase solar inverter X3-MIC-5K-G2

• Flexible Adaptability

  • Built-in export power control function

  High Efficiency

  • Up to 98.3% efficiency
  • 32A per MPP tracker for optimized performance
  • 200% DC oversizing & 110% AC overloading output
  • Built-in global MPP scan for enhanced tracking
  • Low startup voltage & ultra-wide MPPT range

  Intelligent Design

  • IP66 protection for durability
  • Ultra-high power density in a compact size
  • 24h monitoring via WiFi, LAN, or 4G
  • Smart load management for devices like heat pumps and smart EV chargers

  Assured Safety

  • Type II SPD on AC & DC side (optional)
  • AFCI support (optional)

  Technical Specifications

  • Max. PV input voltage: 1000V
  • Max. PV input current: 16A/16A
  • No. of MPP trackers / Strings per MPP tracker: 2 (1/1)
  • Ingress protection: IP66
  • Dimensions (W × H × D): 342 × 434 × 144.5 mm
  • Net weight: 15.5 kg
