Description

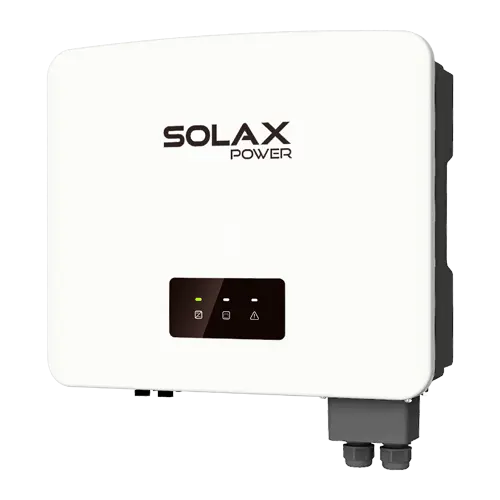

Solax 5kW Three Phase Hybrid Inverter X3-HYBRID-5.0D

• 5kW nominal output power with a peak of 12kW for 10 seconds
• 150% EPS overload output for uninterrupted operation
• Less than 10ms switchover time for seamless backup power
• Supports both lithium-ion and lead-acid batteries
• CT compatible with response time within 0.3 seconds
• Intelligent load management, including heat pump support
• Parallel operation up to 150kW for scalable energy solutions
• Five work modes with two customizable charging periods
• Virtual Power Plant (VPP) ready for ancillary services
• Three-phase unbalanced output with up to 5kW on a single phase
• Super-backup ready for EPS operation without batteries
• 200% PV oversizing and up to 110% AC overload output
• High charging and discharging efficiency of up to 97.5%
• Built-in shadow tracking function for optimized solar performance
• 16A DC input current, compatible with high-power solar panels
• Low start output voltage for extended inverter operation
• IP65-rated for protection against dust and water
• Integrated SPD for enhanced safety
• Compact dimensions (503 × 503 × 199 mm) with a net weight of 30 kg
• Communication interfaces: RS485, Pocket WiFi (optional LAN/4G), DRM, USB upgrade
